Phone and Tablet LiDAR in Construction: What It Can and Cannot Do
By Kush Agarwal, President and CEO, YelloSKYE. Published .
Executive Summary
- The Question: Phones and tablets now carry LiDAR sensors. Can site teams use them to scan a construction site, and where do they stop being reliable?
- The Answer: A phone scan is a quick, approximate 3D record of a small space: good for room dimensions, context photos and recording services before they are covered. Short range, coarse detail and growing error over distance mean it cannot stand in for a professional scanner where a measurement drives a design or a payment.
- The YelloSKYE Angle: Use phone scans as site notes and keep measured work for professional scanning. BIM IQ builds as-built models from scanner and drone point clouds, and the DEX platform keeps every capture on one timeline.
The LiDAR sensor built into some phones and tablets can produce a rough 3D scan of a room, a riser or a single element in a few minutes, which makes it handy for quick dimensions and visual records on site. It cannot match a professional scanner for range, detail or verified accuracy, so it should not be used where a measurement will drive a design, a fabrication order or a payment.
This guide is for site engineers, project managers and BIM coordinators deciding whether the device in their pocket is good enough for a given job. It explains what the sensor actually does, the tasks it handles well, where it falls short and how to get better results. For a full explanation of terrestrial, mobile and aerial scanning, see our guide to laser scanning in construction. For measured as-built work, YelloSKYE uses BIM IQ.
What the sensor in a phone actually is
A phone or tablet LiDAR module is a small, low-power depth sensor. It projects a sparse pattern of infrared dots and measures how long each takes to bounce back, giving a coarse depth map of whatever is in front of it. On its own, that depth map is far too thin to describe a room.
The useful part comes from software. Scanning apps combine the depth readings with the device's camera and motion sensors, estimate how the device is moving and stitch successive frames into a single surface. Most apps produce a textured mesh: a continuous skin of small triangles coloured with the camera image. Some can also export a point cloud.
That design explains both the appeal and the limits:
- It is fast and familiar. Anyone who can take a video can make a scan, with no tripod, targets or training.
- It is short-range. The sensor in the most widely used devices is rated by its manufacturer for up to about five metres.
- Its geometry is partly estimated. The mesh fills gaps between sparse depth points, which smooths edges and can invent surfaces that are not there.
- It knows nothing about project coordinates. A phone scan sits in its own local frame unless it is aligned to something else afterwards.
Where phone scanning helps on site
Used for the right jobs, a phone scan saves time and gives remote colleagues more context than a set of photos.
Quick dimensions and room context
Measuring a room's approximate size, ceiling height or opening widths for an early estimate, a furniture layout or a conversation with a supplier is well within reach. The scan also shows how the space fits together, which a list of tape measurements does not.
Recording services before they are covered

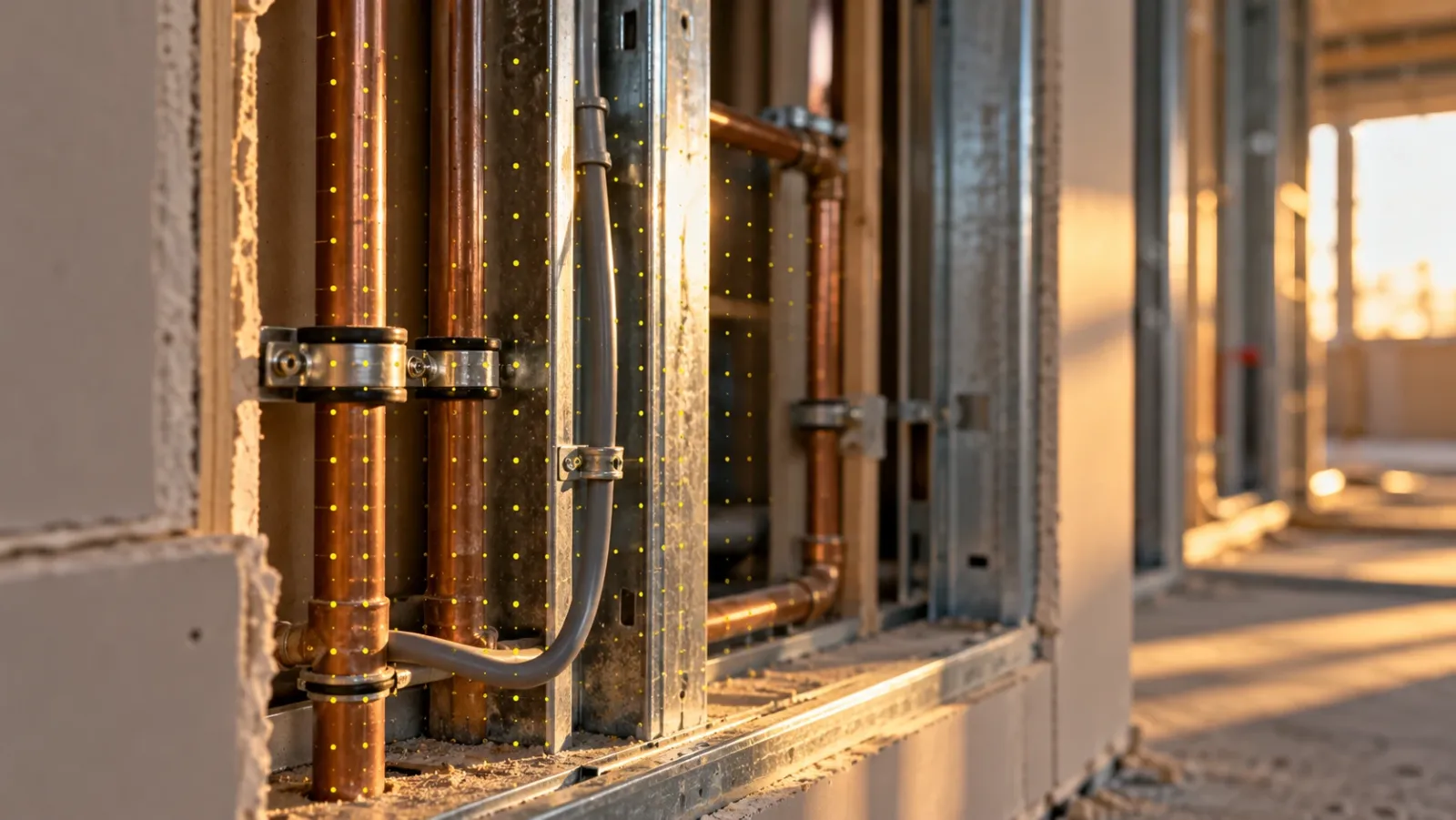

A short scan of a wall cavity, a riser or a ceiling void just before it is closed gives a 3D view of where pipes, conduits and fixings sit. It will not prove positions to the millimetre, but it is far better than nothing when someone later needs to drill or cut.
Context for snags and defects
A scan of the area around a defect shows its surroundings in three dimensions, so a remote engineer can see what is nearby and how access might work.
Planning a professional survey
Walking the building with a phone before a survey helps the scanning team plan setups, spot glass and reflective areas and estimate how much time the survey will take.
Small renovation spaces
For a single bathroom, kitchen or small office being refitted, a phone scan can be enough for early space planning, provided nobody treats it as a measured survey.
Where it falls short
The limits show up quickly once the space gets larger, the tolerance gets tighter or the scan has to fit with other data.
Range and scale
With a working range of a few metres, the device has to be carried close to every surface. Large halls, high ceilings, facades and external works are out of reach or captured only as distorted fragments.
Drift over distance
The app tracks its own position as you move, and small errors in that estimate add up. A single room may close neatly, but a long corridor or a whole floor often bends, stretches or fails to meet itself where the route loops back. Independent academic tests of phone LiDAR have generally found errors measured in centimetres rather than millimetres, rising with the size of the area scanned.
Detail
Sparse depth readings miss thin and small items. Cables, small-bore pipes, fixings and sharp arrises tend to be rounded off or lost in the mesh.
Difficult surfaces and light
Glass, mirrors, polished metal and very dark finishes confuse the sensor just as they do larger scanners, but with fewer readings to compensate. Strong direct sunlight can also swamp the infrared signal outdoors.
No control, no proof
A professional scan comes with registration and control reports that show how well the data fits. A phone scan normally has neither, so there is no way to show a consultant, a contractor or an owner how far it can be trusted.
Phone LiDAR vs professional scanners
| Phone or tablet LiDAR | Professional mobile scanner | Terrestrial scanner | |
|---|---|---|---|
| Working range | A few metres | Tens of metres | Tens to hundreds of metres, depending on model |
| Detail captured | Coarse; small items lost | Good for rooms and services | Dense enough for small elements and edges |
| Typical error | Centimetres, growing with area | Lower, controlled with targets and loops | Lowest, checked through registration |
| Area per scan | A room or a riser | A floor or a building | One setup at a time, joined later |
| Survey control | Rarely | Yes, with targets | Yes, with targets and control points |
| Usual output | Textured mesh, sometimes a point cloud | Point cloud | Point cloud with registration report |
| Who operates it | Anyone on site | Trained operator | Trained surveyor or scanning specialist |
| Good for | Notes, context, quick dimensions | Fast existing-condition surveys | Scan to BIM, structural checks, prefabrication |
Matching the tool to the question
| Question on site | Phone scan good enough? | Use instead |
|---|---|---|
| Roughly how big is this room? | Yes | Not needed |
| What did this wall cavity look like before boarding? | Yes, as a visual record | 360 capture for the whole floor |
| Will this prefabricated riser module fit? | No | Terrestrial scan of the shaft |
| Is the column on its gridline? | No | Scan tied to survey control, compared with the model |
| What is the existing layout of a building we are about to redesign? | No | Professional scan and as-built model |
| How has the whole floor progressed this week? | No | 360 walk along a fixed route |
| What is around this defect? | Yes | Not needed |
The pattern is simple. If the answer only needs to be roughly right, or only needs to show what is there, the phone is fine. If someone will design, fabricate, certify or pay on the strength of the number, it is not.
Getting better results from a phone scan
When a phone scan is the right tool, a few habits make the output far more useful.
- Keep scans small. One room, riser or element per scan. Several small scans drift less than one long one.
- Move slowly and steadily. Keep the device a metre or two from surfaces and avoid quick turns.
- Close the loop. Finish where you started so the app can correct some of its drift.
- Include a known dimension. Scan a door width or a target of known size, then check it in the result.
- Check one measurement by hand. Compare a key distance against a tape or laser measure before relying on the scan.
- Avoid direct sun and large areas of glass. Scan interiors where possible, and note any reflective surfaces.
- Label it properly. Name each scan by level, room or gridline and date, so it can be found later.
- Store it with the project record. A scan on one person's phone helps nobody once that person leaves the project.
Fitting phone scans into a professional workflow
Phone scans work best as one layer of the site record rather than as the measured base. On a typical project, the layers sit like this:
- Visual record: 360 walks and photos, captured often by site staff. Our interior fit-out use case shows how a navigable 360 record cut coordination time by 70%.
- Quick 3D notes: phone scans of specific rooms, voids and defects, taken by whoever is on site.
- Measured record: professional scans tied to survey control at key milestones, modelled or compared with design. How that comparison is organised is covered in our reality capture and BIM guide.
The measured layer is where BIM IQ works. Its inputs are scanner data from the Leica, FARO, Trimble and Matterport ranges plus drone photogrammetry, and its outputs are as-built models or deviation checks against the design model. The renovation scan-to-BIM use case shows an existing building laser scanned so that architects and consultants work from measured conditions, a job a phone scan cannot do. The clash detection use case compares freshly poured structure with the model while it can still be corrected cheaply. Because the DEX platform keeps aerial, 360, fixed-camera and laser data together by date, quick site notes and measured scans can be reviewed side by side.
Checklist: before you rely on a phone scan
- Is the space small? A room, riser or element, not a floor, facade or site.
- Does the answer only need to be approximate? If a design, fabrication or payment depends on it, commission a professional scan.
- Have you checked one dimension by hand? A single tape measurement shows whether the scan is close.
- Are there difficult surfaces? Glass, mirrors, polished metal and dark finishes need caution.
- Is it named and stored with the project? Level, room, date and location, in the shared project record.
- Does anyone need to prove its accuracy? If yes, a phone scan cannot provide that evidence.
Frequently asked questions
Can a phone with a LiDAR sensor replace a professional laser scanner?
Not for work that depends on measured accuracy. A phone or tablet scan is useful for quick dimensions, room context and visual records of small areas, but its range is short, its detail is coarse and its error grows over larger spaces. Scan-to-BIM, structural checks and prefabrication interfaces still need terrestrial or professional mobile scanners tied to survey control.
How accurate is LiDAR on a phone or tablet?
Independent tests have generally found errors measured in centimetres rather than millimetres, and the error tends to grow as the scanned area gets larger. Results also depend heavily on the app, the surface and how steadily the device is moved. Treat a phone scan as an approximate record and check any critical dimension with a tape or laser measure.
What is the range of a phone LiDAR sensor?
Short. The sensor fitted to the most widely used phones and tablets is rated by its manufacturer for distances of up to about five metres. In practice that limits it to rooms, risers, corridors and individual elements rather than whole floors, facades or sites.
Can I use a phone LiDAR scan for scan to BIM?
It can help with early sketches or space planning in a small room, but it is not a sound base for an as-built BIM model that consultants will design from. Phone scans are usually exported as meshes without survey control or a registration report, so nobody can verify how close they are to the real geometry.
Do I need a LiDAR phone for site photo and 360 documentation?
No. Visual site records, 360 walkthroughs and snag photos work with ordinary cameras and phones. LiDAR adds rough depth to a capture but is not required to record what was installed and when.
